Description

AE-CVVGA converts VGA to Component Video, allowing connection of PC/laptop VGA to TV that supports 480p, 720P, 1080i via Component Video. It is with Component Video output as well as VGA, and offers simultaneous viewing on TV and PC monitor. The VGA output is pass-through without processing, while Component Video output is with multiple display modes for option.

Features

• Input 1×VGA   : 1×Audio
• Output1×VGA   : 1×Component Video, 2×Audio
• VGA Resolution :  640x480@60/75Hz, 800x600@60/75Hz, 1024x768@60/75Hz,  1280x800@60Hz, 1280x1024@60Hz
• Component Video Resolution: 480p, 720p, 1080i
• Optional display mode of Component Video Output:Normal, Vivid, Soft, Sharp
• Recommended VGA and corresponding Component Video Resolution: 640x480@60Hz/75Hz → 480p 800x600@60/75Hz    → 720P 1024x768@60/75Hz → 720P; 1080i       (between which 720P is better) 1280x800@60Hz     →   720P; 1080i    (between which 720P is better)
• Portable Size: 12.8(L) × 9.4(W) × 3.4(H) CM
• Power Supply :DC 5V/1A
• Max. Power Consumption :3W

Specification

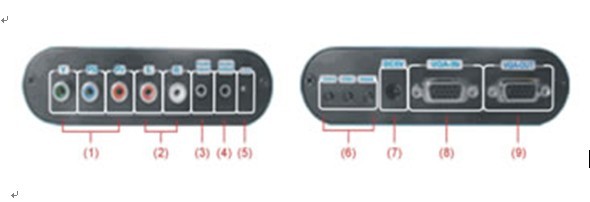

1). Y-Pb-Pr: Component Video output   2). L/R: Audio L/R output;
3). Audio Input: 3.5mm Audio input       4). Audio Output: 3.5mm Audio output;
5). LED: Power indication                      6).ON/OFF, SD/HD, MODE: Setting keys
7). DC/5V: Power supply                       8). VGA-IN: VGA input
9). VGA-OUT: VGA output

Requirements

Package Contents

• VGA to Component Video Converter
• VGA cable
• YPBPR Cable
• Power supply
• Manual
• Color Box
