Description

This product is ANERA brand new PC to TV Converter. It converts VGA to composite (Yellow RCA) and/or S-video TV display signal, and is with audio output. It is different from the old model LKV2000, USB cable, VGA cable and Audio cable combined to form a single cable to get rid of disorder of cables, it also saves the trouble of connect a separate audio cable between PC and TV. It is with cute looking and definitely can attract more eyes.

Features

• 1 Input: 1 X VGA;
• 3 Loop-through Outputs: 1 X VGA, 1 X -Composite Video, 1 X S-video;
• VGA resolution: 640 X 480 (60/75Hz), 800 X 600 (60/75Hz), 1024 X 768 (60/75Hz), 1280 X 768 (60HZ), 1280 X 1024 (60HZ);
• Output signal: CVBS (1.0Vpp), S-Video (Y: 1.0Vpp, C: 003Vpp);
• Output signal impedance: 75Ω;
• Power: DC 5V 1A (it is powered from USB port and no extra power supply is needed) ;
• Working Temperature: 25~75°C;
• Working Humidity: 10% ~ 65%;
• Dimension: 130*75*27 mm (L*W*H).

Specification

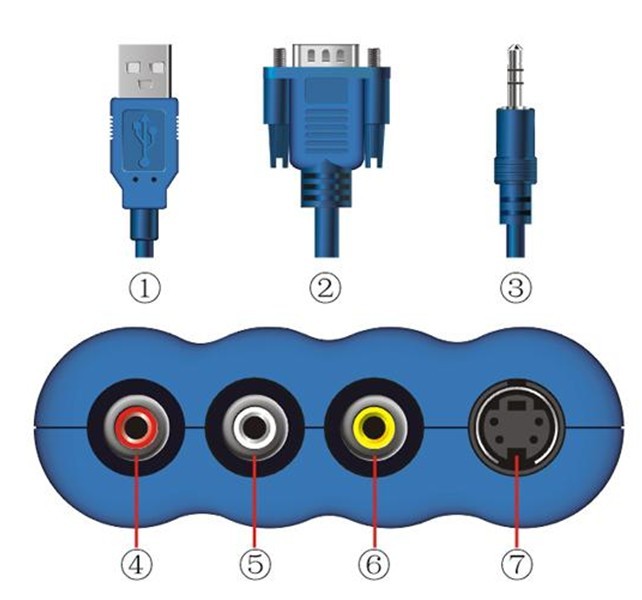

1. USB Power             2. VGA Input                                 3. PC Audio Input             4. Audio R  Output

5. Audio L Output       6. Composite Video Output        7. S-Video Output

Requirements

Package Contents

• PC to TV Converter with Audio output
• S-video cable
• Manual
• Color Box
